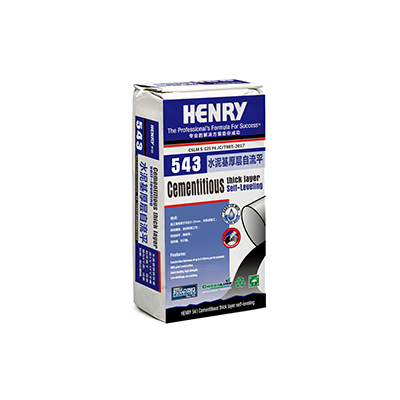

HENRY 543 厚层自流平

● 施工厚度单次可达5-25mm,可泵送施工
● 具有便捷、良好的施工性
● 速找平,强度高
● 低收缩、不开裂

特点:

● 施工厚度单次可达5-25mm,可泵送施工

● 具有便捷、良好的施工性

● 快速找平,强度高

● 低收缩、不开裂



用途:

● HENRY 543 厚层自流平,采用特种水泥、精细骨料 、聚合物喷雾干粉树脂及其他水泥添加剂组成。产品具有良好的流动性,能够快速找平地面,可应用于泵送设备施工,自由控制施工厚度,特别适合于旧地面改造工程 。常温及通风情况良好的条件下 6小时后可上人,待自流平完全干燥后可进行下一道工序 , 缩短工期;可直接在完成地面铺贴瓷砖 、木地板、地毯、各类弹性地板等地面材料。提供平整、坚实的理想基层。属无毒、无害、绿色环保产品。



适用基层:

● 适用于工业厂房、仓储、地下停车场、医疗、教育、家庭、商业公共场所等地面工程的基层找平。



基层处理:

● 基层必须干燥、坚实、可承重、无尘、无妨碍粘结杂物。为保证自流平表面强度和附着力,建议使用亨历 510通用型水性界面剂或亨历521双组份环氧界面剂对基层进行处理。



技术参数:

● 存储期:                     6个月

● 流动度:                    ≥110mm

● 可施工时间:              约20min

● 抗压强度(28天后):≥25(MPa)

● 抗折强度(28天后):≥4(MPa)

● 施工温度:                 5-30℃

● 混合比:                       粉(25kg):水(5L)

● 可铺板所需时间:          待自流平完全干燥后

● 可上人时间:                 约6h



适用基层:

● 乳液型界面处理剂,用于墙地面吸收性基层如混凝土、水泥砂浆、石膏基层的底涂,即封闭基层的毛细孔和缝隙,降低多孔性基层的吸收性;同时增强基层的界面附着力,起粘接桥的作用。经底涂后的基层可以进行亨历自流平找平层的施工。



施工方法:

● 基层清理干净后,根据基层情况选用合适的界面剂。当界面剂施工后,处于半干状态时(约底涂施工后2-4小时),开始自流平施工。

● 在一容器中倒入5L清水,然后慢慢加入一包25kg的自流平,配水比例为5升水:25公斤自流平粉末;用搅拌机搅拌 3-5 分钟至均匀无团的浆状,将混合料倒出,均匀地铺开,用抹刀布展均匀至所需的厚度,刚施工好的混合料要防止受阳光直射和强风吹拂,混合料须在20分钟内完成施工。也可以采用输送能力(20-40公升/分钟)的泵输送浆体进行施工。

● 初凝前需使用特制消泡辊滚压,以排除浆体内空气。



注意事项:

● 由于本品含水泥,会与水反应产生强碱性,避免与皮肤、眼睛接触。一旦接触,立即用大量清水冲洗;如果皮肤或眼睛受到伤害,立即就医 。本品完全硬化后不会产生对身体、环境有影响的物质。



包装与储存:

● HENRY 543厚层自流平的用量约为1.7㎏/㎡∙ mm(具体用量由施工厚度以及基面的实际条件决定)。



Features:

Construction thickness of up to 5-25mm;

With good construction;

Quick leveling, high strength;

Low shrinkage, no cracking.



Uses:

HENRY 543 Cementitious thick layer self-leveling, with the special cement, fine aggregate, polymer resin and other additives of cement powder spray, the product has good mobility , can fast automatic leveling the ground, a construction thickness of up to 5-25mm at room temperature, can walk after 6 hours, When the self leveling is completely dried, the next process can be carried out, shorten the construction period, can be directly in the ground paving tile, wood flooring, carpet, flooring and other materials to provide all kinds of elastic ground leveling intact, solid ideal base, non-toxic and harmless, green environmental protection products.



Applicable substrate:

Apply to factories, warehouses, parking lots, hospitals, operation room, family, office and other ground engineering level leveling.



Substrate Preparation:

The base must be dry, firm, load-bearing, dust-free, and free from impurities. In order to ensure the self-leveling surface strength and adhesion, HENRY 510 is recommend for absorbent /HENRY 521non-absorbent substrate.



Construction method:

1. After cleaning up the grassroots, should choose the appropriate interface agent, when the interface agent in the semi dry state ( about 2-4 hours after the bottom coating construction), began to self leveling construction.

2.In a container of water poured into the 5L, then slowly add a bag of 25kg self leveling, stirring for 3-5 minutes to uniform group slurry mixer, the mixture is poured, evenly spread, with a spatula to exhibit uniform required thickness, good construction mixture just to prevent direct sunlight by the sun and the wind blowing, mixture construction must be completed in 20 minutes. The slurry can be conveyed with a pump capacity (20-40 L/min).

3.Before the initial coagulation, the use of special defoaming roll roll to exclude the air, to ensure uniform thickness.



Technical parameter:

Storage period:       6 months

Fluidity:                   ≥110mm

Construction time:  About 20 minutes

Compressive strength (28 days later):     ≥25(MPa)

Flexural strength (28 days later):         ≥4(MPa)

Construction temperature:             5-30℃

Mixing ratio:           Powder (25kg) : water (5L)

Can the time required for planking:    Waiting for self-leveling completely dry

Pedestrian time:    About 6 hours



Reference dosage:

The coverage of HENRY 543 Cementitious thick layer self-leveling is about 1.7kg/㎡∙ mm, the specific amount is determined by the actual conditions and the thickness of the construction base.



Matters needing attention:

As this product contains cement, it reacts with water to produce strong alkaline, and avoid contact with skin and eyes. Once in contact, flush immediately with water. If skin or eye is injured, seek medical attention immediately. This product is completely hardened and will not produce any material that affects the body or the environment.



Packaging and storage:

25kg composite paper bag packaging. This product must be stored in the room, pay attention to moisture, prevent freezing, exposure. No more than 8 layers on pallets, with a shelf life of 6 months.
